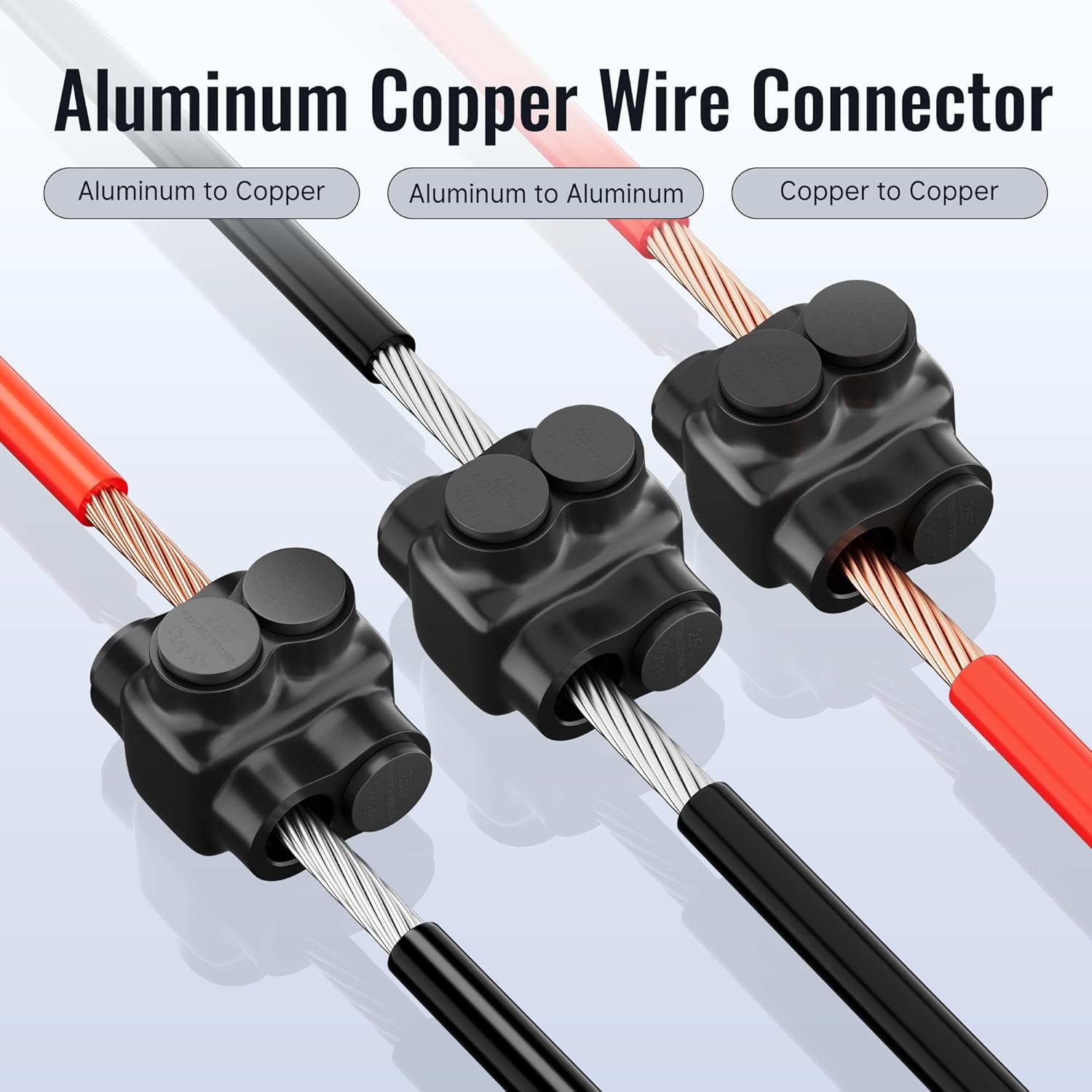

RVBOATPAT Aluminum to Copper Wire Connectors 250MCM-6 AWG 2 Port Aluminum Copper Splice 5/16" Slotted Allen Hex Dual Entry Electrical Power Connector
Product details
| Management number | 215639040 | Release Date | 2026/04/12 | List Price | $23.20 | Model Number | 215639040 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Unique Design: The insulated inline splice connectors are specially designed for 250kcmil-2 AWG, 3 AWG, 6 AWG gauge wires. It uses hex screw to fix the wires and comes lubricating oil with antioxidant properties in the ports
- Insulation Material: Aluminum copper splice connectors are insulated with high dielectric strength plastic sol for improved chemical protection and wear resistance
- Product Advantages: Our insulated cable connectors are easy to remove and re-insert cables, more convenient than butterfly nut connectors, with a larger wire diameter range and higher current, specially designed for those who need easy connection and use
- Mixing Material Wires Connection: Insulated wire connectors allow copper wire to copper wire, aluminum wire to aluminum wire, and copper wire to aluminum wire connections, making the insulated connector the best alternative for safely splicing aluminum wire to copper wire
- Safety: The design purpose of aluminum to copper wire connectors is to ensure the safety of aluminum to copper connections and to prevent electrical fires caused by overheating of aluminum wires due to conductor mixing
| Color | Dual Entry 2 Port 250MCM-6 AWG |
|---|---|
| Gauge | 0.01 |
| Model | ITC-102D-4/0AWG |
| Terminal | Screw Terminal |
| Stud Size | 5/16 |
| Brand Name | RVBOATPAT |
| Unit Count | 1.0 Count |
| Manufacturer | RVBOATPAT |
| Material Type | Aluminum |
| Connector Type | Butt Splice |
| Maximum Voltage | 600 Volts |
| Contact Material | Aluminum |
| Specification Met | UL |
| Included Components | 5 x Black insulated Connector |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 2.6"L x 2.29"W x 2.23"H |
