| Management number | 215133804 | Release Date | 2026/04/12 | List Price | $20.00 | Model Number | 215133804 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

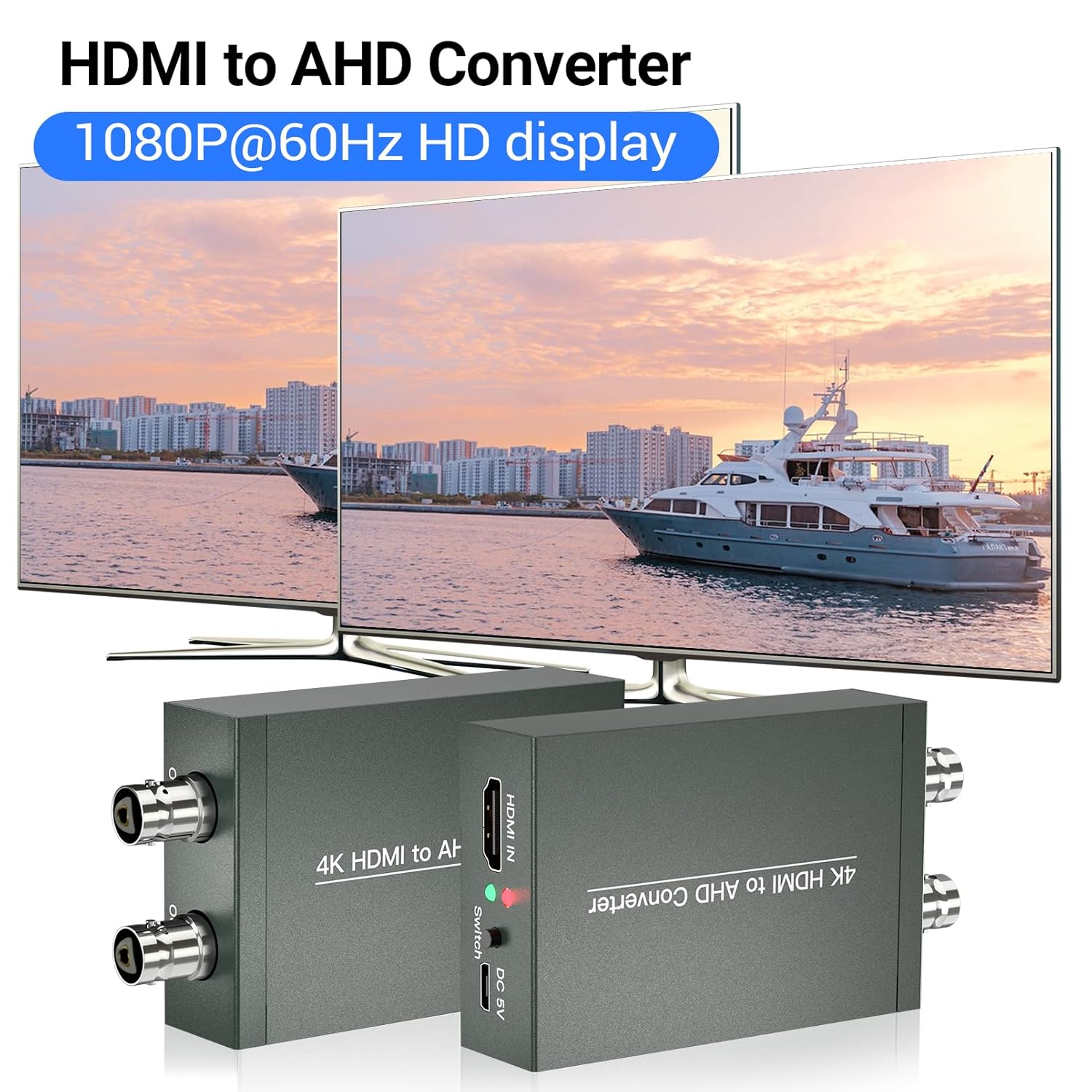

Note: 1. Only works one direction, can not be reversed used as AHD to HDMI. 2. Maximum input resolution up to 4k/60Hz, but the AHD output resolution only up to 1080P@60Hz. 3. Support HDMI 2.0 4K/60Hz input, but only decode HDCP 1.4 & 1.3, does not decode HDCP 2.2. HDMI to AHD Converter--Audio Embedder & Auto Format Detection This HDMI to AHD Converter converts HDMI signal into AHD signals. With 2 ports output, it allows you to display HDMI signal on 2 AHD displays simultaneously. Specifications: 1. Input Port: HDMI 2. Output Port: 2 x AHD(BNC male connectors) 3. HDMI Input Resolutions: 480i@60Hz, 576i@50Hz, 480P@60Hz, 576P@60Hz, 720P@50/60Hz, 1080p@24/25/30/50/60Hz, 800 x 600P@60Hz, 1024 x 768P@60Hz 1280 x 800P@60Hz, 1280 x 960P@60Hz, 1280 x 1024@60Hz, 1440 x 900P@60Hz,1600 x 1200P@60Hz, 1680 x 1050P@60Hz, 3840 x 2160@24/25/30/50/60Hz, 4096 x 2160@24/25/30/50/60Hz 4. AHD Output Resolutions: 720P@50/60Hz, 1080P@24/25/30Hz, 1080P@50/60Hz 5. Dimension: 3.3 x 2.2 x 0.9inces/ 83 x 55 x 24mm 6. Weight: 165g Features: 1. Supports 2 ports AHD output simultaneously 2. Embedded audio and image synchronization output 3. Supports HDMI 2.0, 4k/60Hz input 4. Built-in ESD protection circuitry can effectively prevent electrostatic damage Packing List: 1 x HDMI to AHD Converter 1 x Power Adapter 1 x User Manual
| Brand | SEMZHENG |
|---|---|
| Item Weight | 6.9 ounces |
| Manufacturer | SEMZHENG |
| Interface Type | HDMI |
| Number of Pins | 33 |
| Number of Channels | 2 |
| Product Dimensions | 3.27"L x 2.17"W |
